Retrieve Form Field Locations

Retrieving a PDF's form field locations using DynamicPDF Core Suite for .NET is a breeze, as this C# example illustrates.

How to Retrieve Form Fields

The following steps and C# sample code illustrate retrieving form field locations in a PDF using DynamicPDF Core Suite for .NET.


Steps for Retrieving Form Field Location in PDF


  1. Create a PdfDocument object with the desired PDF.
  2. Create a MergeDocument object with the desired PDF.
  3. Create a Page and add it to the MergeDocument instance.
  4. Get the desired form field's dimensions and use as desired.
  5. Add the MergeDocument object's Draw method to draw and save the PDF document.

Sample Code - C#


PdfDocument pdfDocument = new PdfDocument("form-example.pdf");
MergeDocument document = new MergeDocument("form-example.pdf");
Page page = document.Pages[0];
float x = pdfDocument.Form.Fields["check_box_nm"].GetX(page);
float y = pdfDocument.Form.Fields["check_box_nm"].GetY(page);
float height = pdfDocument.Form.Fields["check_box_nm"].Height;
float width = pdfDocument.Form.Fields["check_box_nm"].Width;
string txt = "(" + x + ", " + y + ", " + width + ", " + height + ")";
Label label = new Label(txt, x + width + 10, y, 100, 20);
page.Elements.Add(label);
document.Draw("Output.pdf");

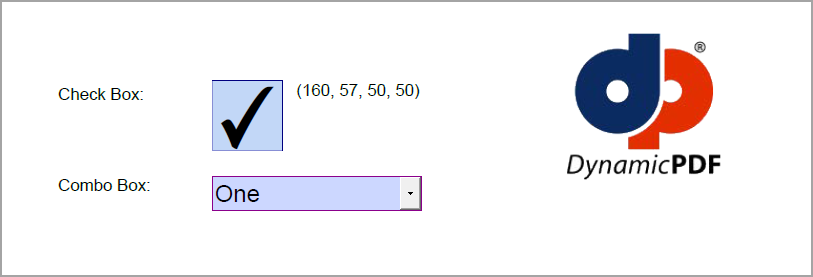

PDF form with label stating checkbox element's dimensions.

GitHub Project

An example project is available on GitHub (examples.dynamicpdf-core-suite-dotnet-core). Examples are provided in C# and VB.NET. Clone or view the example project at GitHub. This specific example discussed on this page are all contained in following classes on GitHub


Clone or View Example Project on GitHub
