DynamicPDF Examples
Examples

Add Charts to PDFs

Easily add various types of charts to PDF documents, including Area, Bar, Column, Line, Pie, and XYScatter charts using DynamicPDF Core Suite for .NET. The following C# examples illustrate each chart type.

How to Add Area Chart to PDF

The following steps and C# sample code illustrates adding an Area Chart to a PDF document using DynamicPDF Core Suite for .NET.


Steps for Adding an Area Chart to a PDF Document


  1. Create a Document object.
  2. Create a Page object and add it to the Document instance.
  3. Create a Chart object by specifying its parameters in the constructor.
  4. Create a PlotArea object and associate it with the Chart instance.
  5. Create a Title object and associate it with the Chart instance.
  6. Create a IndexedAreaSeries object and values.
  7. Create a AutoGradient object and assign it to a series.
  8. Add IndexedAreaSeries to the PlotArea.
  9. Add a Title for Y axis.
  10. Add AxisLables to X axis.
  11. Add the Chart instance to the Page instance.
  12. Add the Draw method to output the PDF document.

Sample Code - C#


Document document = new Document();
Page page = new Page();
document.Pages.Add(page);
Chart chart = new Chart(0, 0, 400, 230);
PlotArea plotArea = chart.PrimaryPlotArea;
Title title1 = new Title("Website Visitors");
Title title2 = new Title("Year - 2007");
chart.HeaderTitles.Add(title1);
chart.HeaderTitles.Add(title2);
IndexedAreaSeries areaSeries1 = new IndexedAreaSeries("Website A");
areaSeries1.Values.Add(new float[]{5, 7, 9, 6});
AutoGradient autogradient1 = new AutoGradient(90f, CmykColor.Red, CmykColor.IndianRed);
areaSeries1.Color = autogradient1;
plotArea.Series.Add(areaSeries1);
Title lTitle = new Title("Visitors (in millions)");
areaSeries1.YAxis.Titles.Add(lTitle);
areaSeries1.XAxis.Labels.Add(new IndexedXAxisLabel("Q1", 0));
areaSeries1.XAxis.Labels.Add(new IndexedXAxisLabel("Q2", 1));
areaSeries1.XAxis.Labels.Add(new IndexedXAxisLabel("Q3", 2));
areaSeries1.XAxis.Labels.Add(new IndexedXAxisLabel("Q4", 3));
page.Elements.Add(chart);
document.Draw("Output.pdf");

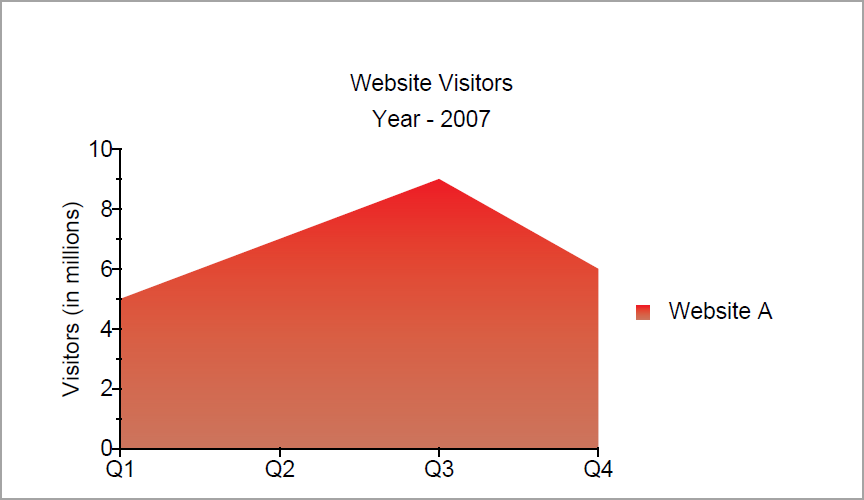

area chart

How to Add Bar Chart to PDF

The following steps and C# sample code illustrates adding a Bar Chart to a PDF document using DynamicPDF Core Suite for .NET.


Steps for Adding a Bar Chart to a PDF Document


  1. Create a Document object.
  2. Create a Page object and add it to the Document object.
  3. Create a Chart object by specifying its parameters in the constructor.
  4. Create a PlotArea object and associate it with the Chart instance.
  5. Create a Title object and associate it with the Chart instance.
  6. Create a IndexedBarSeries object and values.
  7. Create a AutoGradient object and assign it to a series.
  8. Add an IndexedBarSeries to the PlotArea instance.
  9. Add a Title for X axis.
  10. Add AxisLables to Y axis.
  11. Add the Chart instance to the Page instance.
  12. Add the Draw method to output the PDF document.

Sample Code - C#


Document document = new Document();
Page page = new Page();
document.Pages.Add(page);

Chart chart = new Chart(0, 0, 400, 230);
PlotArea plotArea = chart.PrimaryPlotArea;

Title title1 = new Title("Website Visitors");
Title title2 = new Title("Year 2007");
chart.HeaderTitles.Add(title1);
chart.HeaderTitles.Add(title2);

IndexedBarSeries barSeries1 = new IndexedBarSeries("Website A");
barSeries1.Values.Add(new float[] { 5, 7, 9, 6 });
IndexedBarSeries barSeries2 = new IndexedBarSeries("Website B");
barSeries2.Values.Add(new float[] { 4, 2, 5, 8 });
IndexedBarSeries barSeries3 = new IndexedBarSeries("Website C");
barSeries3.Values.Add(new float[] { 2, 4, 6, 9 });

AutoGradient autogradient1 = new AutoGradient(180f, CmykColor.Red, CmykColor.IndianRed);
barSeries1.Color = autogradient1;
AutoGradient autogradient2 = new AutoGradient(180f, CmykColor.Green, CmykColor.YellowGreen);
barSeries2.Color = autogradient2;
AutoGradient autogradient3 = new AutoGradient(180f, CmykColor.Blue, CmykColor.LightBlue);
barSeries3.Color = autogradient3;

plotArea.Series.Add(barSeries1);
plotArea.Series.Add(barSeries2);
plotArea.Series.Add(barSeries3);

Title lTitle = new Title("Visitors (in millions)");
barSeries1.XAxis.Titles.Add(lTitle);

barSeries1.YAxis.Labels.Add(new IndexedYAxisLabel("Q1", 0));
barSeries1.YAxis.Labels.Add(new IndexedYAxisLabel("Q2", 1));
barSeries1.YAxis.Labels.Add(new IndexedYAxisLabel("Q3", 2));
barSeries1.YAxis.Labels.Add(new IndexedYAxisLabel("Q4", 3));

page.Elements.Add(chart);
document.Draw("output.pdf");

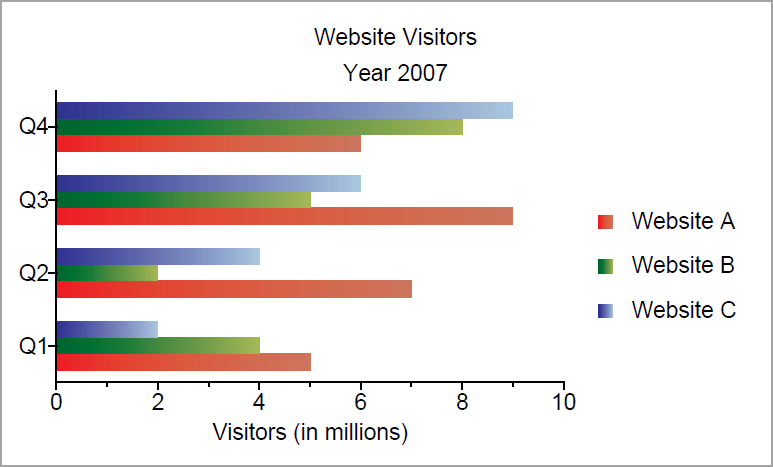

bar chart

How to Add Column Chart to PDF

The following steps and C# sample code illustrate adding a Column Chart to a PDF document using DynamicPDF Core Suite for .NET.


Steps for Adding Column Chart to a PDF Document


  1. Create a Document object.
  2. Create a Page object and add it to the Document instance
  3. Create a Chart object by specifying its parameters.
  4. Create a PlotArea object and associate it with the Chart object.
  5. Create a Title object and associate it with the Chart instance.
  6. Create a IndexedColumnSeries object and values.
  7. Create a AutoGradient object and assign it to a Series.
  8. Add IndexedColumnSeries to the PlotArea.
  9. Add a Title for Y axis.
  10. Add AxisLables to X axis.
  11. Add the Chart instance to the Page instance.
  12. Add the Draw method to output the PDF document.

Sample Code - C#


Document document = new Document();
Page page = new Page();
document.Pages.Add(page);

Chart chart = new Chart(0, 0, 400, 230);
PlotArea plotArea = chart.PrimaryPlotArea;

Title title1 = new Title("Website Visitors");
Title title2 = new Title("Year - 2007");
chart.HeaderTitles.Add(title1);
chart.HeaderTitles.Add(title2);

IndexedColumnSeries columnSeries1 = new IndexedColumnSeries("Website A");
columnSeries1.Values.Add(new float[] { 5, 7, 9, 6 });
IndexedColumnSeries columnSeries2 = new IndexedColumnSeries("Website B");
columnSeries2.Values.Add(new float[] { 4, 2, 5, 8 });
IndexedColumnSeries columnSeries3 = new IndexedColumnSeries("Website C");
columnSeries3.Values.Add(new float[] { 2, 4, 6, 9 });

AutoGradient autogradient1 = new AutoGradient(180f, CmykColor.Red, CmykColor.IndianRed);
columnSeries1.Color = autogradient1;
AutoGradient autogradient2 = new AutoGradient(180f, CmykColor.Green, CmykColor.YellowGreen);
columnSeries2.Color = autogradient2;
AutoGradient autogradient3 = new AutoGradient(180f, CmykColor.Blue, CmykColor.LightBlue);
columnSeries3.Color = autogradient3;

plotArea.Series.Add(columnSeries1);
plotArea.Series.Add(columnSeries2);
plotArea.Series.Add(columnSeries3);

Title lTitle = new Title("Visitors (in millions)");
columnSeries1.YAxis.Titles.Add(lTitle);

columnSeries1.XAxis.Labels.Add(new IndexedXAxisLabel("Q1", 0));
columnSeries1.XAxis.Labels.Add(new IndexedXAxisLabel("Q2", 1));
columnSeries1.XAxis.Labels.Add(new IndexedXAxisLabel("Q3", 2));
columnSeries1.XAxis.Labels.Add(new IndexedXAxisLabel("Q4", 3));

page.Elements.Add(chart);
document.Draw("output.pdf");

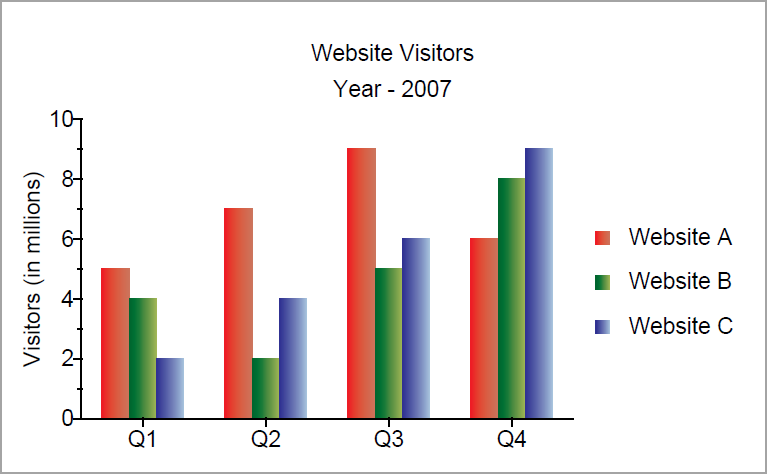

column chart

How to Add Line Chart to PDF

The following steps and C# sample code add a Line Chart to PDF document using DynamicPDF Core Suite.


Steps for Adding a Line Chart to a PDF Document


  1. Create a Document object.
  2. Create a Page object and add it to the Document instance.
  3. Create a Chart object by specifying its parameters.
  4. Create a PlotArea object and associate with the Chart instance.
  5. Create a Title object and associate with the Chart instance.
  6. Create a IndexedLineSeries object and values.
  7. Create a AutoGradient object and assign it to a series.
  8. Add an IndexedLineSeries to the PlotArea.
  9. Add Title for Y axis.
  10. Add AxisLables to X axis.
  11. Add the Chart instance to the Page instance.
  12. Add the Draw method to output the PDF document.

Sample Code - C#


// Create a PDF Document
Document document = new Document();
// Create a Page and add it to the document
Page page = new Page();
document.Pages.Add(page);

// Create a chart
Chart chart = new Chart(0, 0, 400, 230);
// Create a plot area
PlotArea plotArea = chart.PrimaryPlotArea;

// Create header titles and add it to the chart
Title title1 = new Title("Website Visitors");
Title title2 = new Title("Year - 2007");
chart.HeaderTitles.Add(title1);
chart.HeaderTitles.Add(title2);

// Create a indexed line series and add values to it
IndexedLineSeries lineSeries1 = new IndexedLineSeries("Website A");
lineSeries1.Values.Add(new float[] { 5, 7, 9, 6 });
IndexedLineSeries lineSeries2 = new IndexedLineSeries("Website B");
lineSeries2.Values.Add(new float[] { 4, 2, 5, 8 });
IndexedLineSeries lineSeries3 = new IndexedLineSeries("Website C");
lineSeries3.Values.Add(new float[] { 2, 4, 6, 9 });

// Add indexed line series to the plot area
plotArea.Series.Add(lineSeries1);
plotArea.Series.Add(lineSeries2);
plotArea.Series.Add(lineSeries3);

// Create a title and add it to the yaxis
Title lTitle = new Title("Visitors (in millions)");
lineSeries1.YAxis.Titles.Add(lTitle);

//Adding AxisLabels to the XAxis
lineSeries1.XAxis.Labels.Add(new IndexedXAxisLabel("Q1", 0));
lineSeries1.XAxis.Labels.Add(new IndexedXAxisLabel("Q2", 1));
lineSeries1.XAxis.Labels.Add(new IndexedXAxisLabel("Q3", 2));
lineSeries1.XAxis.Labels.Add(new IndexedXAxisLabel("Q4", 3));

// Add the chart to the page
page.Elements.Add(chart);
// Save the PDF
document.Draw("output.pdf");

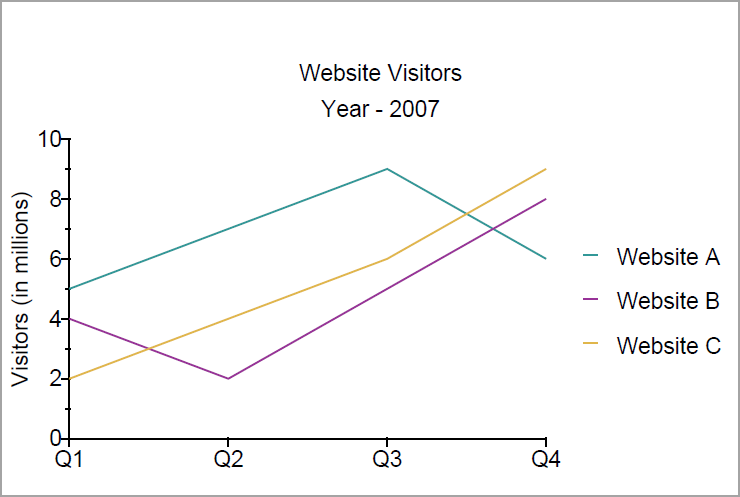

line chart

How to Add Pie Chart to PDF

The following steps and C# sample code illustrate adding a Pie Chart to a PDF document using DynamicPDF Core Suite.


Steps for Adding a Pie Chart to a PDF Document


  1. Create a Document object.
  2. Create a Page object and add it to the Document instance.
  3. Create a Chart object by specifying its parameters.
  4. Create a PlotArea object and associate it with the Chart object instance.
  5. Create a Title object and associate it with the Chart object instance.
  6. Create a AutoGradient object and assign it to a series.
  7. Create a ScalarDataLabel object.
  8. Create a PieSeries object and assign the data label, values and color.
  9. Add the Chart instance to the Page instance.
  10. Add the Draw method to output the PDF document.

Sample Code - C#


Document document = new Document();
Page page = new Page(PageSize.A4, PageOrientation.Landscape);
document.Pages.Add(page);

Chart chart = new Chart(0, 0, 700, 400);
PlotArea plotArea = chart.PlotAreas.Add(50, 50, 300, 300);

Title tTitle = new Title("Website Viewers (in millions)");
Title tTitle1 = new Title("Year 2007");
chart.HeaderTitles.Add(tTitle);
chart.HeaderTitles.Add(tTitle1);

AutoGradient autogradient1 = new AutoGradient(90f, CmykColor.Red, CmykColor.IndianRed);
AutoGradient autogradient2 = new AutoGradient(90f, CmykColor.Green, CmykColor.YellowGreen);
AutoGradient autogradient3 = new AutoGradient(90f, CmykColor.Blue, CmykColor.LightBlue);

ScalarDataLabel da = new ScalarDataLabel(true, false, false);
PieSeries pieSeries = new PieSeries();
pieSeries.DataLabel = da;
plotArea.Series.Add(pieSeries);

pieSeries.Elements.Add(27, "Website A");
pieSeries.Elements.Add(19, "Website B");
pieSeries.Elements.Add(21, "Website C");

pieSeries.Elements[0].Color = autogradient1;
pieSeries.Elements[1].Color = autogradient2;
pieSeries.Elements[2].Color = autogradient3;

page.Elements.Add(chart);
document.Draw(@"Output.pdf");

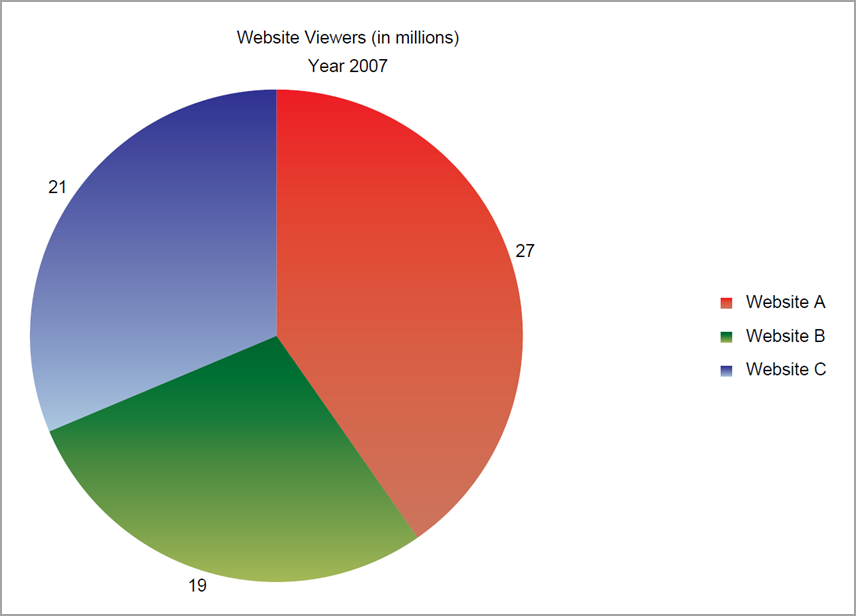

pie chart

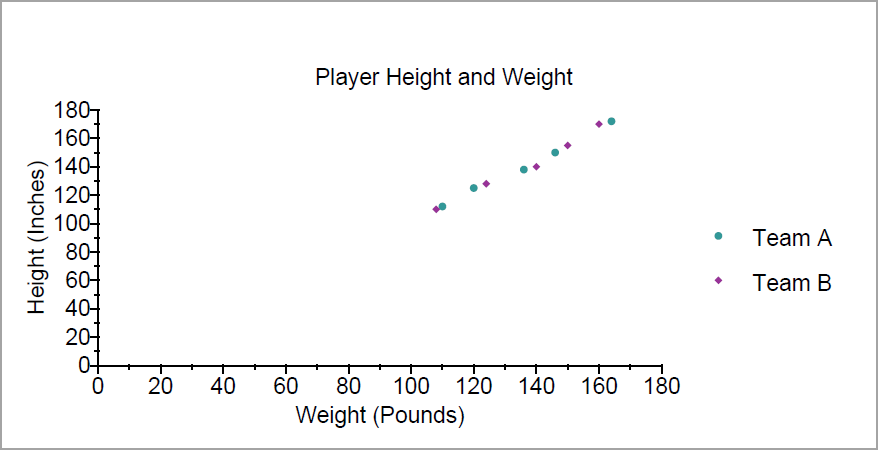

How to Add XYScatter Chart to PDF

The following steps and C# sample code illustrate adding an XYScatter Chart to a PDF document.


Steps for Adding an XYScatter Chart to a PDF Document


  1. Create a Document object.
  2. Create a Page object and add it to the Document instance.
  3. Create a Chart object by specifying its parameters.
  4. Create a PlotArea object and associate it with the Chart object instance.
  5. Create a Title object and associate it with the Chart instance.
  6. Create a XYScatterSeries object and assign its values.
  7. Add the series to PlotArea.
  8. Add Title to the X and Y axis.
  9. Add the Chart instance to the Page instance.
  10. Add the Draw method to output the PDF document.

Sample Code - C#


Document document = new Document();
Page page = new Page();
document.Pages.Add(page);

Chart chart = new Chart(0, 0, 450, 200);
PlotArea plotArea = chart.PrimaryPlotArea;

Title tTitle = new Title("Player Height and Weight");
chart.HeaderTitles.Add(tTitle);

XYScatterSeries xyScatterSeries1 = new XYScatterSeries("Team A");
xyScatterSeries1.Values.Add(112, 110);
xyScatterSeries1.Values.Add(125, 120);
xyScatterSeries1.Values.Add(138, 136);
xyScatterSeries1.Values.Add(150, 146);
xyScatterSeries1.Values.Add(172, 164);
XYScatterSeries xyScatterSeries2 = new XYScatterSeries("Team B");
xyScatterSeries2.Values.Add(110, 108);
xyScatterSeries2.Values.Add(128, 124);
xyScatterSeries2.Values.Add(140, 140);
xyScatterSeries2.Values.Add(155, 150);
xyScatterSeries2.Values.Add(170, 160);

plotArea.Series.Add(xyScatterSeries1);
plotArea.Series.Add(xyScatterSeries2);

Title title1 = new Title("Height (Inches)");
Title title2 = new Title("Weight (Pounds)");
xyScatterSeries1.YAxis.Titles.Add(title1);
xyScatterSeries1.XAxis.Titles.Add(title2);

page.Elements.Add(chart);
document.Draw(@"Output.pdf");

XYScatter chart

GitHub Project

An example project is available on GitHub (examples.dynamicpdf-core-suite-dotnet-core). Examples are provided in C# and VB.NET. Clone or view the example project at GitHub. This specific example discussed on this page are all contained in following classes on GitHub


Clone or View Example Project on GitHub

Getting Started

Get started easily by installing DynamicPDF Core Suite for .NET through NuGet or manually. Then, refer to the documentation for more information on using and purchasing the product.


NuGet Package


The easiest way to install DynamicPDF Core Suite is by obtaining the NuGet package using Visual Studio's Package Manager. You can also obtain the NuGet package by downloading it directly. Refer to the installation documentation for more information.

NuGet Package ID: ceTe.DynamicPDF.CoreSuite.NET

DynamicPDF Core Suite Information


DynamicPDF Core Suite for .NET combines creating, merging, and visual report creation into one powerful product for creating PDF documents. It is ideal for anyone who needs to generate PDF documents or reports or work with existing PDFs in their applications. With a free Evaluation Edition to try and with flexible and royalty-free licensing options, why not start using DynamicPDF Core Suite for .NET today!



More Information on Charts


Available on Other Platforms

DynamicPDF Core Suite is also available for the Java and COM/ActiveX platforms. Refer to the respective product pages for more details.


Why Choose DynamicPDF?

  • Transparent Pricing
  • Lots of Features
  • Easy to Use
  • Great Support
  • Efficient Performance
  • Product Maturity (Over 22 Years)
  • Free Evaluation
  • .NET Core Support (Most Products)
  • Flexible Licensing

We’re Not The Only Ones That Think We’re Great!
